SPECIFICATIONS

Battery Included: Yes

Brand Name: quansheng

Choice: yes

High-concerned chemical: None

Is_Display: Yes

Maximum Range: 5km-10km

Model Number: UV-K1(8)

Output Power(w): 5w-10w

Use: others

Walkie Talkie Type: Portable

Waterproof / Water-Resistant: IP57

• ✈️ Air Band Reception: Listen to AM aviation frequencies (108-135MHz). Perfect for aviation enthusiasts to monitor pilot and tower communications.

• 📡 50-600MHz Full Band Rx: Wide receiving coverage including FM Radio, Air Band, VHF, and UHF.

• ⚡ Type-C Charging: Supports convenient USB-C charging (on the device) + Desktop charging base.

• 🔄 One-Key Frequency Match: "Frequency Meter" function allows you to detect and copy the frequency/CTCSS tones of other radios in seconds (Wireless Copy).

• 🌤️ NOAA Weather: Built-in NOAA weather channel reception to stay alert during outdoor trips.

Main Features:

1. Model: Quansheng UV-K1(8)

2. Battery Capacity: 1400mAh Li-ion Battery (Standard)

3. Cross-Band Intercom: Supported

4. Wireless Radio Replication: Easily copy settings from one K1(8) to another.

5. Three Scan Modes: Time, Carrier, and Search.

6. VOX Function: Hands-free transmission.

7. DTMF & 1750Hz Tone: Supported.

8. Channel Name Editable: Customize channel names via keypad.

9. Scrambler: 10-Group voice encryption.

10. Torch Light: Built-in LED flashlight for emergencies.

Frequency Range:

• F1: 50.0000-76.0000MHz (RX only)

• F2: 108.0000-135.9750MHz (RX only - AM Air Band)

• F3: 136.0000-173.9750MHz (TX and RX both)

• F4: 174.0000-349.9750MHz (RX only)

• F5: 350.0000-399.9750MHz (RX only)

• F6: 400.0000-469.9750MHz (TX and RX both)

• F7: 470.0000-600.0000MHz (RX only)

• FM Radio: 76.000-108.000MHz

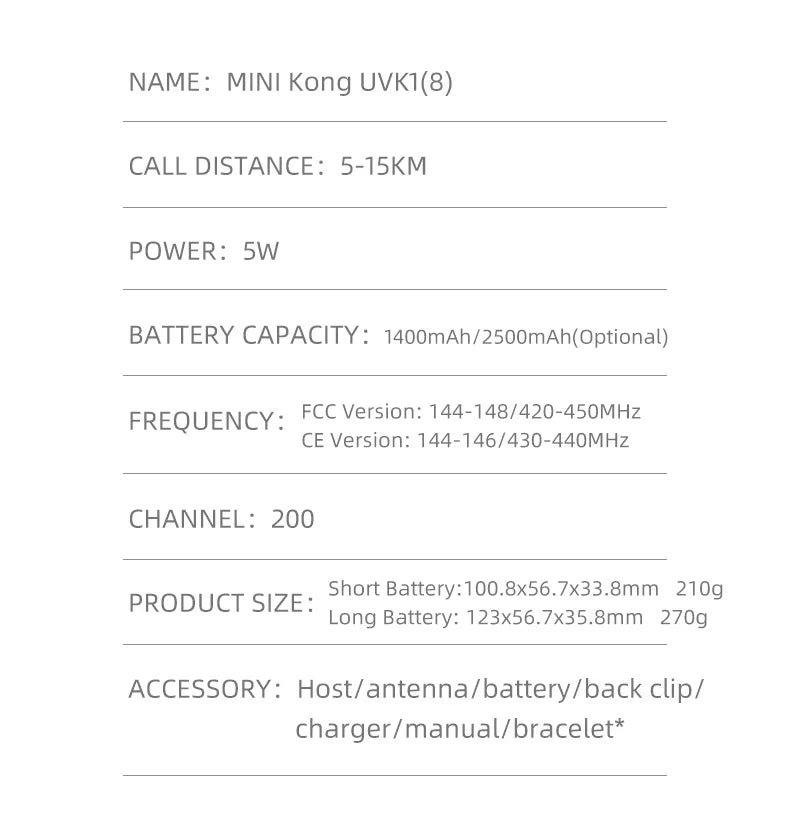

General Specifications:

• Power Output: 5W

• Channel Quantity: 200

• Audio Power: ≥0.5W

• Antenna Impedance: 50Ω

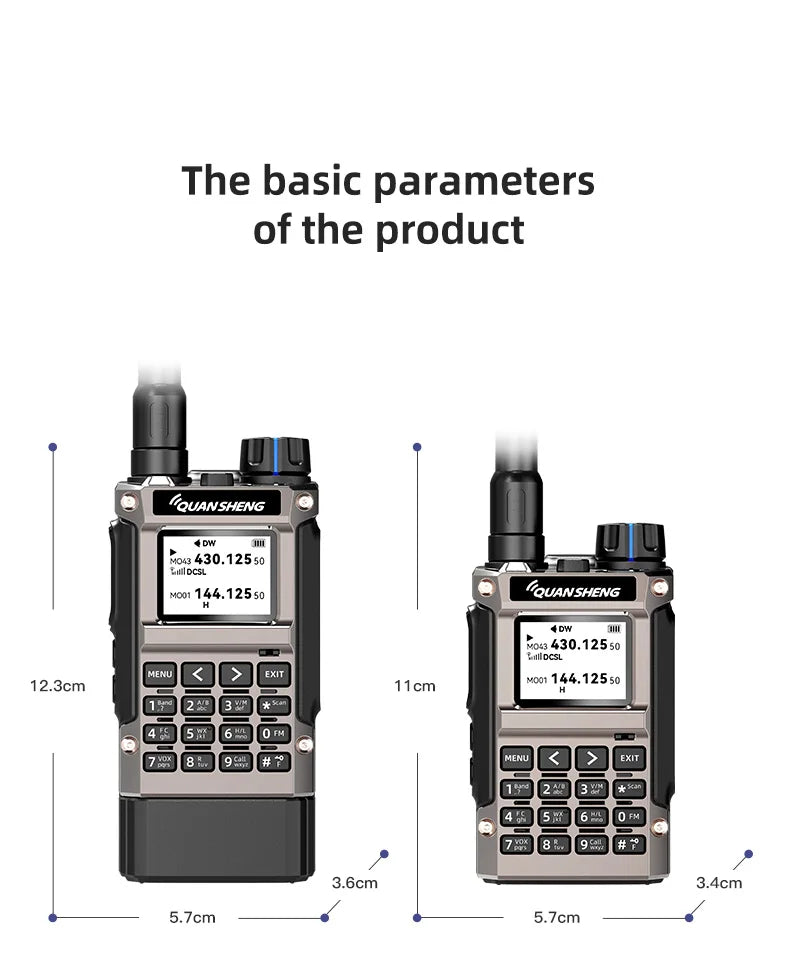

• Size: 115mm x 60mm x 37.5mm (approx)

Package Contains:

• 1 × UV-K1(8) Radio Body

• 1 × 1400mAh Li-ion Battery

• 1 × Antenna

• 1 × Belt Clip

• 1 × Desktop Charger

• 1 × User Manual

• 1 × Hand Strap
